Researchers at Pohang University of Science and Technology (POSTECH) in South Korea have developed a speaker system that can direct speech to a specific person.

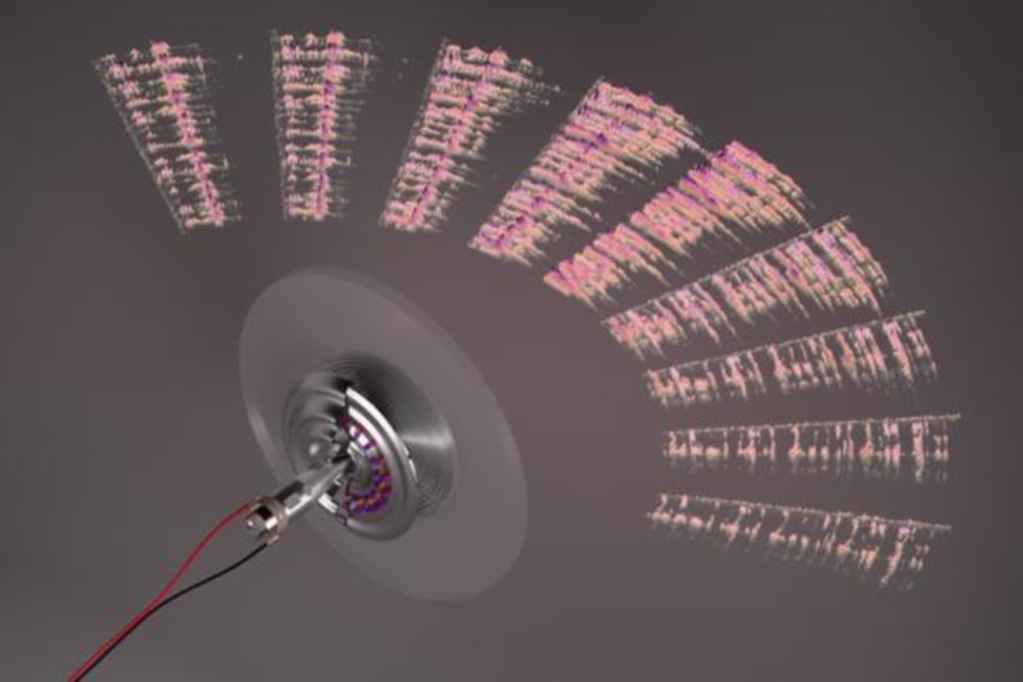

image: Schematic of the ultrasonic transducer developed by the research team, integrating two types of metamaterials, together with the directional characteristics of transmitted voice signals. Pic cedit: POSTECH
The question, “Could sound, like light, be sent only where we want it?” led to the team’s highly directional speaker, MiPAL. By modulating ultrasound with audible content, the system can deliver sound only within a targeted area. A representative technology is the parametric array loudspeaker (PAL), which uses the nonlinear interaction of two ultrasonic waves in air to generate and concentrate audible sound in a specific direction.
Compared with conventional speakers, PALs can confine sound to a much narrower region. Traditional systems, however, require tens to hundreds of ultrasonic emitters to be precisely arranged and individually controlled, making them expensive and structurally complex. More recent PAL designs have simplified the hardware, but the vibrating diaphragm can also excite unwanted vibration modes, allowing sound to leak sideways and undermining directivity.
The team addressed this problem by integrating two types of metamaterials into a single ultrasonic transducer. An acoustic metasurface was mounted at the front. Acting like a lens for sound, it reshapes the irregular ultrasonic wavefronts radiated by the diaphragm into a straight, narrow beam, much like a laser. Elastic meta-units were placed at the rear. Acting more like a sound barrier, they suppress unwanted vibrations at selected frequencies and keep sound from leaking to the sides. In effect, the design uses a double safeguard: it focuses the sound at the front and blocks parasitic noise at the back.
As a result, the single-element device directed sound over a frequency range of 500 Hz to 10 kHz—more than four octaves, covering a large portion of the audible spectrum. The researchers also conducted an experiment simulating aircraft seating, where different announcements or music might need to reach individual passengers without disturbing their neighbors. After playing real broadcast and music signals and measuring sound intensity at different angles, they observed a clear improvement after the elastic meta-units were added.
The metamaterial structures are modular and can be produced using 3D printing, allowing the device to be readily redesigned for different seat spacing, angles and other operating conditions.
Once commercialised, the technology could let passengers on planes or trains listen to personalized announcements or content without disturbing the person next to them. In museums and exhibition halls, explanations could be heard only by visitors standing in front of a particular display. The “sound only I can hear” once seen only in films may soon become part of everyday life.
The study, published in Nature Communications on May 22, 2026 under the title “Dual-domain metamaterials co-integrated with a compact ultrasonic transducer for highly directional audio generation”, is available HERE.
