Key Digital introduces KD-MLV4x4Pro 4K UHD HDMI matrix switcher

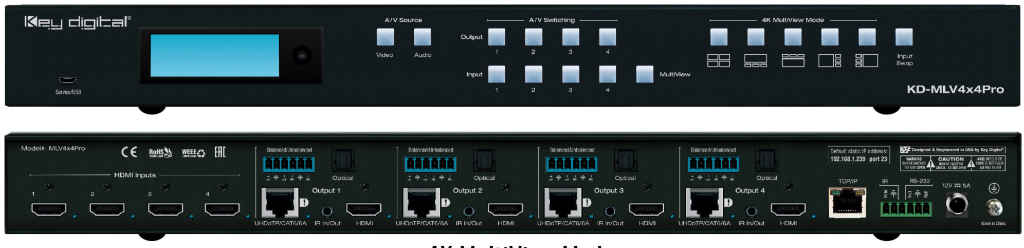

Key Digital has introduced the KD-MLV4x4Pro 4x4 4K UHD HDMI multi-view tiling processor with seamless matrix switching.

This model offers integrated HDMI signal extension, providing extended and updated capabilities compared to existing products. The KD-MLV4x4Pro is suitable for multisource, multiscreen applications for bars and clubs, casino and house of worship applications.

The KD-MLV4x4 offers seamless switching for uninterrupted screen transitions during independent source selection of any of the four HDMI inputs to feed any of the four HDMI outputs while in full-screen mode. Image layering allows stacked images with customisable priority settings per output. The four inputs can also be tiled in one of five pre-set layouts and fed to any output set to multi-view mode. Custom-matrixed outputs can be created, allowing picture-in-picture display and user-mapped combinations of live content and graphics with selectable bezel size on each window. For security and other applications where on-screen source identification is desired, each source can be overlayed with up to 16 characters of text with variable sizing and on-screen location settings.

The KD-MLV4x4Pro natively accommodates 4K inputs and outputs, along with independently selectable output down-conversion to 1080P and 720P for support of legacy displays and projectors. The four HDMI outputs are mirrored to RJ45 ports for signal extension up to 40 metres (50 metres at 1080p) using Key Digital’s proprietary UHD over Twisted Pair (UHDoTP) technology. The HDMI and UHDoTP outputs can be used simultaneously to feed up to eight displays. To feed displays at a distance, four KD-EXMLVRx UHDoTP receivers are included with the KD-MLV4x4Pro, with Power over CAT (PoC) to simplify installation wiring. Each receiver also incorporates an HDMI output as well as bi-directional IR remote support with repeater inputs for capture of remote signals for source control and repeater outputs for local control of displays.

The KD-MLV4x4Pro can be controlled from its front panel buttons, from the free Key Digital iOS app, by way of Key Digital Management Software Pro (KDMS Pro) for Windows computers, through RS-232 commands, from TCP/IP control systems via open API, and by means of its built-in web UI.

Via the KD-MLV4x4Pro’s independent audio matrix, audio output ports may be routed separately from the HDMI & UHDoTP ports. Audio from any source may be selected while in multi-view mode. Audio can be de-embedded with two-channel analog audio output on a six-pin balanced/unbalanced output connector and two-channel to 5.1 digital output (Dolby Digital & DTS™ audio supported) available in TOSLink optical format for soundbar support.

The KD-MLV4x4Pro supports an expansive list of content standards, including the HDCP 2.2 anti-piracy protocol; the HDR10 standard for high-dynamic-range video; and EDID management for display recognition. It also offers 8-bit deep colour support, and video resolutions up to 3840 x 2160p 4:2:0 at 60fps are supported on inputs with up to 3840 x 2160p 4:4:4 at 30fps supported on outputs. The KD-MLV4x4Pro has a full buffer system to manage HDCP authentication, EDID control handshakes and, for serial data optimisation, TMDS re-clocking/signal re-generation.
