Stuttgart’s State University of Music and the Performing Arts (HMDK) HMDK has recently upgraded its recording facilities with a 9.1.4 control room, powered exclusively by Genelec smart active monitors.
HMDK has developed into one of Germany’s largest and most prestigious universities for the arts, while also playing an important role as a concert promoter and cultural centre, and has increased its focus on immersive audio.
“We have four performance spaces: our large concert hall, a chamber music hall, a theatre and an orchestra rehearsal hall, which can also be used as a performance venue,” comments Arne Morgner, HMDK’s deputy technical director. “We host 500 to 550 events per year, which actually makes us the largest event organizer in Stuttgart!”
As Morgner points out, HMDK’s recording studio fulfils multiple important functions beyond recording classical music. “We’re also responsible for livestreaming and broadcasting, including collaborations with the public broadcaster SWR, and we function as the technical backbone for all event technology. It’s also the centre for all servers and networks related to audio, video, and lighting in the building.
“Control Rooms A and B both started out as compact stereo spaces equipped with classic 1031A and 1032A models,” Morgner explains. “After successive upgrades to 5.1 then 7.1 surround systems, we finally adopted 7.1.4 immersive in 2024. Then, with the recent development of our ‘Klangmobil’ 9.1.4 immersive mobile recording truck, we upgraded the system in Control Room A to the same 9.1.4 format – powered by Genelec’s ‘The Ones’ monitors.” The Klangmobil allows children in the region to experience the music of Bach in immersive – with all the content for the truck being produced, edited and programmed back at the studio.
Morgner explains the background to HMDK’s journey into immersive: “In our broadcasting operations, we started very early with binaural livestreams to transmit 3D audio, and that’s how we encountered 3D audio microphone arrays. We also regularly supervise master’s theses in cooperation with the Stuttgart Media University, focusing on 3D audio, under the supervision of Professors Oliver Curdt and Frank Melchior.”
So, while they were able to produce binauralized 3D audio content, HMDK lacked a proper room with the necessary monitoring capabilities. “We wanted to be able to work with established formats like Dolby Atmos, but also to produce 3D audio independently of any specific standard. As a result, we decided on a 9.1.4 setup,” says Morgner.

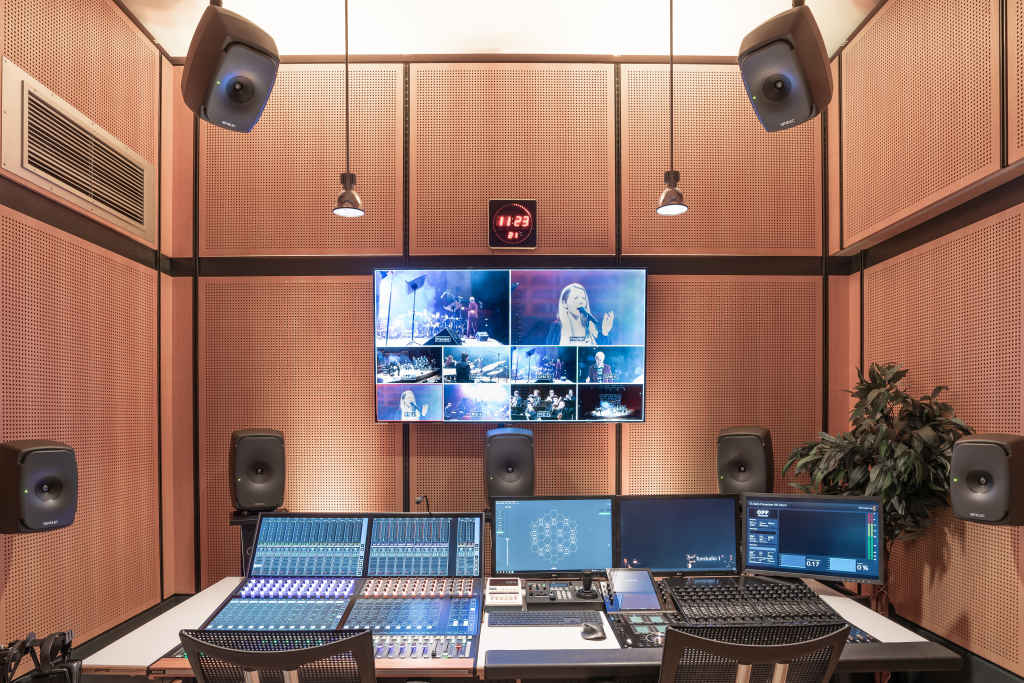

With Morgner handling the planning and implementation alongside HMDK colleague Walter Schimon, Control Room A’s 9.1.4 system features 8351As in the LCR positions, with 8341As as surrounds and overheads, supported with a 7370A subwoofer for LFE. Control Room B is equipped with a stereo pair of 1032Bs, plus a 2.1 system comprising 8341As with a 7370A sub. Lastly, a pair of 8350A monitors powers the studio’s Recording Room. The Klangmobil truck itself is powered by 4430A Smart IP loudspeaker models, which deliver studio-quality Genelec performance with the added power and flexibility of Dante/AES67 network connectivity.
