Portrait Milano, a Luxury Lugarno collection hotel in Italy, has integrated a complete K-array audio system.
One of Milan’s leading luxury hotels and part of the Lugarno Collection, Portrait Milano offers guests Italian hospitality in the heart of the city. Housed in a former Archiepiscopal Seminary dating back to 1565, Portrait Milano is third in the Portrait Collection. Opened in December 2022, the 73-room property recently underwent a large-scale integration of an audio system from fellow Italian brand, K-array.
“At Portrait Milano, they required a solution that would blend seamlessly with the stylish interiors but provide moderately high SPL,” explains Alberto Gaetti, project support specialist at K-array. “We worked closely with systems integrators, A3 System and Next Domus, to design and implement a system that would complement the guest experience at this luxury hotel.”
In total, the project encompassed three zones within the hotel, along with a subdivisible meeting space and the integration of audio in the hotel spa. The largest space to consider at the Portrait Milano was the 10_11 Bar, Giardino, Ristorante. A long space, divided into three areas for dining, drinks and socialising, 14 units of K-array’s Vyper ultra-flat aluminium line array loudspeakers in a sleek white finish were positioned individually on poles fixed to the walls to provide consistent coverage.
With Pure Array Technology built-in, each Vyper unit can cover the venue with uniform and coherent audio. Nine Rumble subwoofers provide low-end reinforcement, either recessed in the walls or hidden under built-in seating. Eight-channel Kommander amplifiers provide power and control of the system.
“The main challenge was tailoring the system for moderately high SPL without touching the walls,” continues Gaetti. “The subwoofers have been hidden under the seats, but the Vypers, designed for on-wall or in-wall installation, have been mounted on sleek poles off-the-wall, because of the acoustic finish of the wall surface.”
At the heart of the property lies the Porticato, a long, narrow outdoor space with original stone columns. Here, a continuation of the Vyper and Rumble combination, with eight and four of each, respectively, are installed in loudspeaker/subwoofer pairs on the interior wall, interspersed with individual Vyper units.

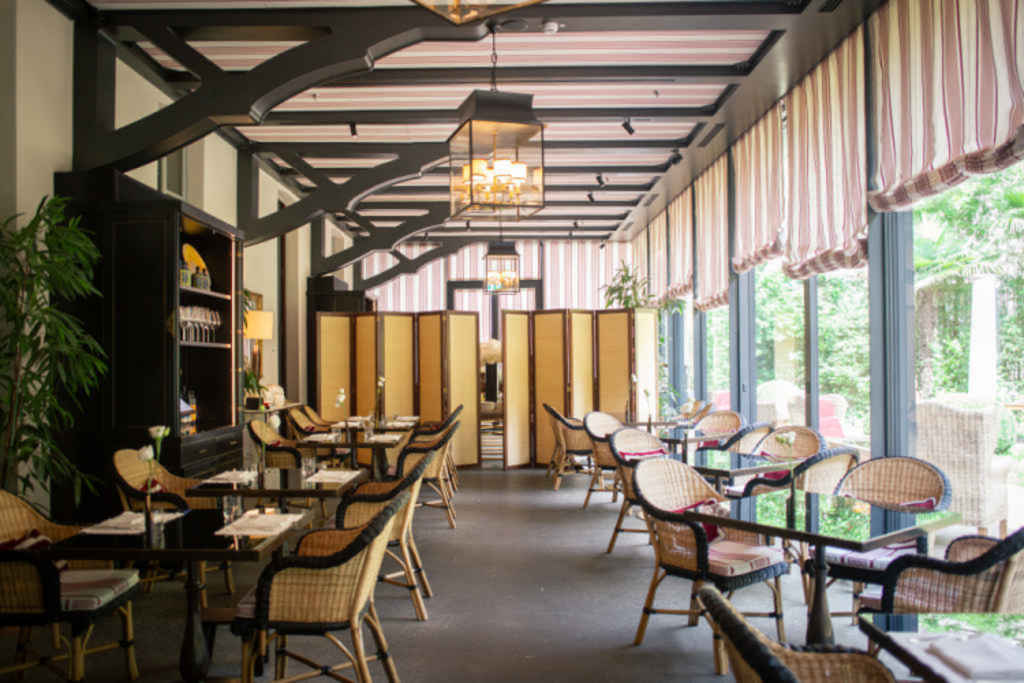

The two remaining hospitality areas, an open-air dining area and its adjoining garden, required a different approach. “For maximum audio coverage with a wide dispersion we opted for 14 Tornado point-source loudspeakers,” explains Gaetti. Four Rumble subwoofers, fixed to the ceiling beams were also installed. In the garden, a system composed of four Kobra, metre-long stainless steel line array elements also featuring Pure Array Technology, and a further three Rumble subwoofers create an immersive soundscape.
Portrait Milano also offers a sub-divisible events room to its guests. Users of the space can either enjoy a unique, spacious room or separate the space into three private spaces using two sliding walls. In the smallest room, a lighting and audio system, RAIL by KSCAPE, delivers an all-in-one solution. For the other rooms, a combination of Vyper and Kobra loudspeakers with Rumble subwoofers offer versatile options for presentations and audio for video conferencing. “In summary, each of the three rooms has its own sound system with individual room inputs,” explains Gaetti. “In case the room is needed for larger meetings, the users can easily configure the control system to ensure the loudspeakers work together as a single system.”
Playing host to ‘The Longevity Suite’, the most advanced biohacking and anti-ageing brand in Europe, Portrait Milano’s Longevity Spa fuses the latest technology with a holistic approach to wellness. Comprising a pool and wet area plus a gym and treatment rooms nestled beneath the ancient vaults of the property, this zone required an audio system that would provide high-quality sound without detracting from the carefully curated interior design.
A total of 10 Lyzard units are installed across the spa reception area and adjoining corridors, including recessed models which allow for direct integration into walls and cavities. Rumble subwoofers, supplied in a matching white finish, complete the background audio systems.
In each private treatment room, individual GC6 ceiling loudspeakers from K-array group brand, KGEAR, provide clients with an immersive experience through the integration of the loudspeakers directly above the treatment bed.
